Flame Retardant ESD Rubber Mat 2mm 3mm Thickness 10e6-10e9 Ohm
Datos del producto:
| Lugar de origen: | Shanghai, China |
| Nombre de la marca: | Herzesd |
| Número de modelo: | Hz-30617 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100 |
|---|
|
Información detallada |
|||
| Espesor: | 2 mm/3 mm | Material: | goma de nitrilo |
|---|---|---|---|
| Resistencia a la superficie: | 10e6-10e9 ohmios | Bajo resistencia a la capa: | 10e3-10e6 ohm |
| Tamaño: | 1*10M; 0,6*10M; 1,2*10M por rollo | Resistencia al calor: | 340 °C |
| Resistencia a volumen: | 10e7-10e10 ohm*cm | Espesor de la capa superficial: | 0.5 mm |
| Espesor de la capa inferior: | 1.5 mm | Tipo de superficie: | mate/brillante |
| Opciones de color: | Verde, gris, azul | Límite de resistencia a la superficie: | ≤10e6ohm |
| Número de modelo: | Hz-30617 | Tamaño normal: | 1m*10m; 1,2 m * 10 m |
| Embalaje: | Membrana de plástico+paleta | ||
| Resaltar: | Flame retardant ESD rubber mat,2mm ESD rubber mat,3mm thickness ESD mat |
||
Descripción de producto

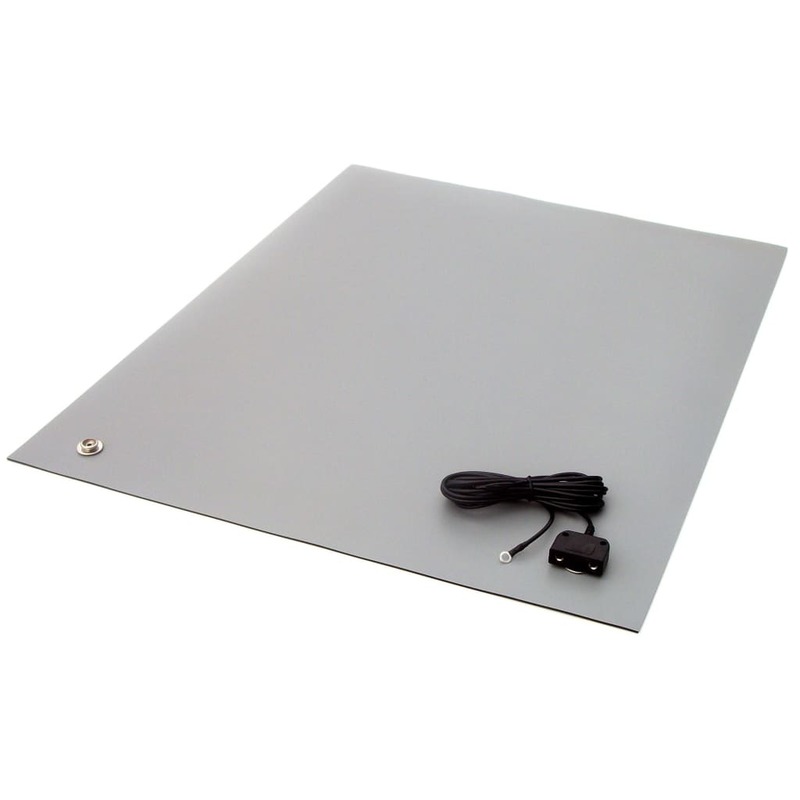

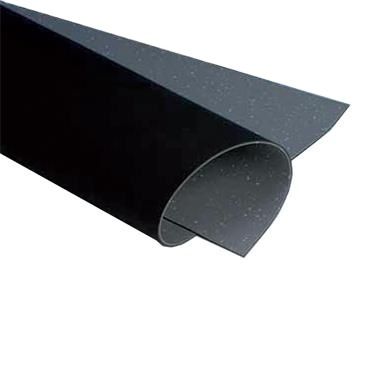

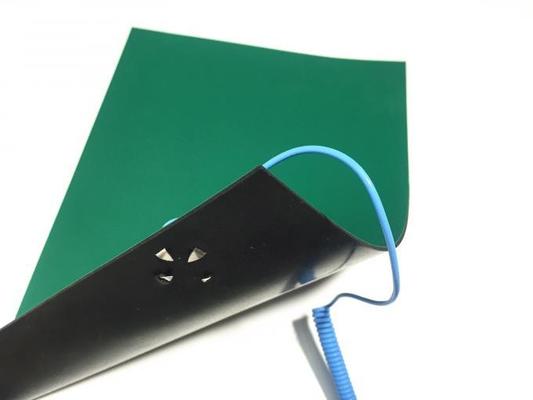

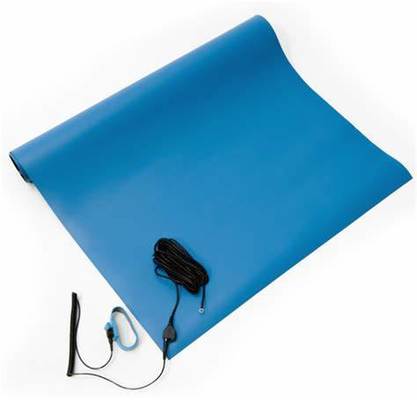

Flame Retardant ESD Antistatic Matting High Temperature Natural Rubber Sheet Table Mat Floor
Product Specifications
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface Resistance | ≤10e6ohm |
| Heat Resistance | 340℃ |
| Volume Resistance | 10e7-10e10 ohm*cm |
Key Features
- ESD tabletop mats provide an ESD-safe work surface on tables or benches
- Available in various sizes and thicknesses
- Includes grounding hardware for proper static dissipation
- Surface layer: 0.5mm thick static-dissipative layer
- Bottom layer: 1.5mm conductive layer
Product Images
Packaging & Shipping
Company Information
The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence. Our products showcase a fine amalgamation of excellence, quality, innovation, and technology. A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories. These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.
Quiere saber más detalles sobre este producto
