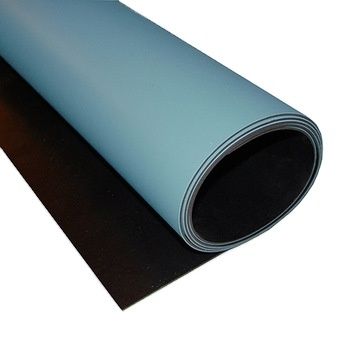

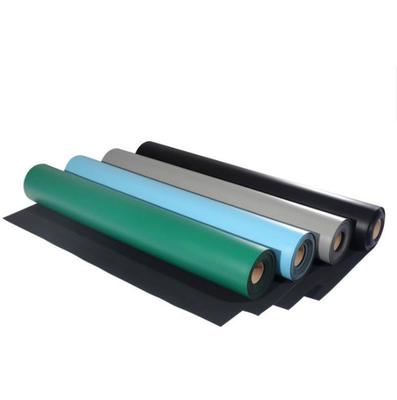

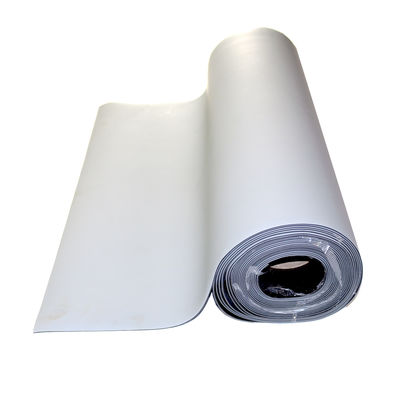

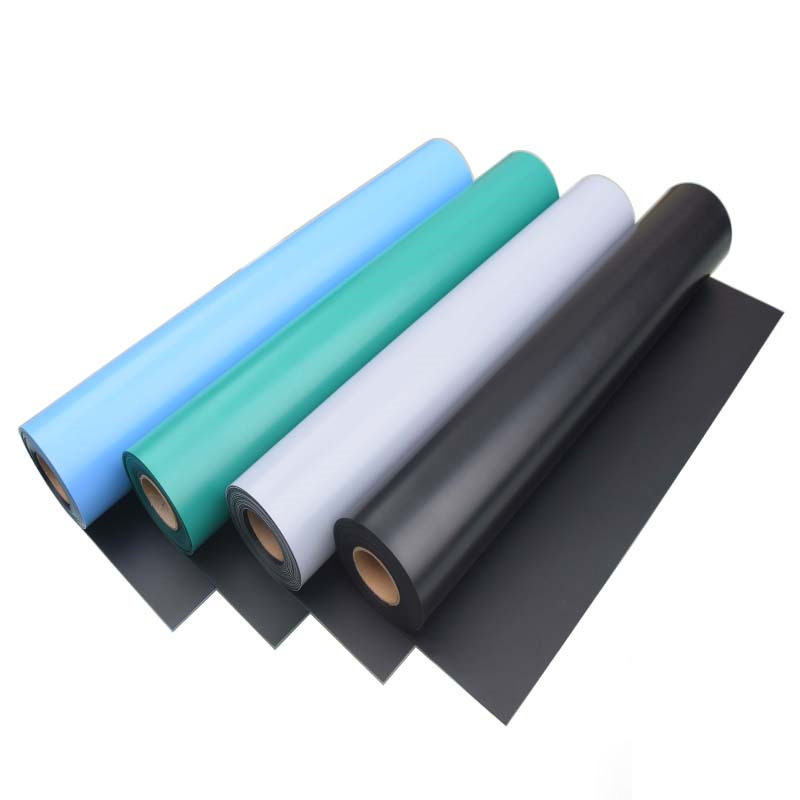

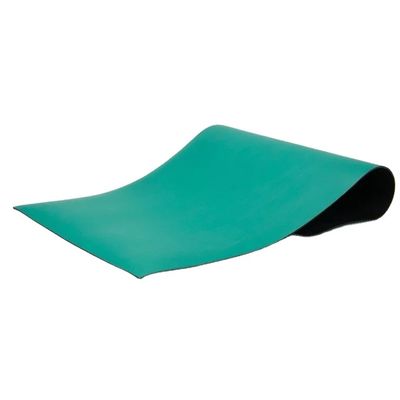

ESD Rubber Mat 2mm 3mm Thickness 10e6-10e9 Ohm Surface Resistance
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | Herzesd |
| Número de modelo: | Hz-30617 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100 |
|---|
|
Información detallada |
|||
| Color: | Verde, gris, azul o personalizado | Espesor: | 2 mm/3 mm |
|---|---|---|---|
| Material: | Caucho de nitrilo | Resistencia a la superficie: | 10e6-10e9 ohmios |
| Bajo resistencia a la capa: | 10e3-10e6 ohm | Tamaño: | 1*10M; 0,6*10M; 1,2*10M por rollo |
| Modelo: | Hz-30617 | Tamaño normal: | 1m*10m; 1,2 m * 10 m |
| Superficie: | mate/brillante | Resistencia a volumen: | 10e7-10e10 ohm*cm |
| Carga electrostática de fricción: | <100V (superficie), <50V (capa conductora) | Capa de disipación estática: | Resistencia de la superficie: 107-109ohm |
| Capa conductora: | Resistencia de la superficie: ≤106ohm | Servicio de procesamiento: | Corte |
| Modifique el color para requisitos particulares: | Disponible con su muestra | ||
| Resaltar: | ESD rubber mat 2mm thickness,ESD rubber mat 3mm thickness,ESD rubber mat 10e6-10e9 ohm resistance |
||
Descripción de producto
HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, as well as rigid ESD table mats designed for the high-tech industry. Our ESD products provide superior static control for sensitive electronic work environments.

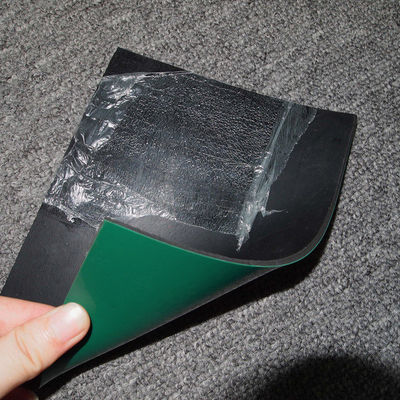

Our ESD Rubber and PVC mats feature resistance to hot solder and chemicals with a two-layer construction: a static dissipative top layer and a black conductive bottom layer. ESD vinyl table mats are ideal for general electronics assembly and are available in either 2-layer mat or single layer homogeneous material configurations.
Both ESD rubber mats and vinyl mats are available in rolls or as complete ESD work surface mat kits that include a ground snap and common point ground. For specialized requirements, HerzESD can custom-cut mats to specific sizes.
| Model | HZ-30617 |
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface resistance | ≤10e6ohm |
| Volume Resistance | 10e7-10e10 ohm*cm |
| Feature | Specification |
|---|---|
| Static dissipation layer | Surface resistance: 107-109ohm |
| Friction electrostatic charge | <100V |
| Conductive layer | Surface resistance: ≤106ohm |
| Friction electrostatic charge | <50V |
| Volume Resistance | 107-1010 ohm*cm |
The ESD products manufactured and supplied by Shanghai Herzesd Industrial represent the pinnacle of meticulous planning and technological excellence. Our products combine quality, innovation, and advanced technology to deliver superior static control solutions.
We continuously upgrade our product line to enhance security features for various applications and environments. Our ESD accessories are built to last and incorporate precision technology. Our dedicated team of professionals consistently works to improve our machines and solutions for better static control performance.
Electronic components and assemblies vulnerable to electrostatic discharges (ESD) include sensitive elements that can be destroyed or damaged when exposed to excessive current or impact energy. These typically include semi-conducting components and thick- and thin-film construction elements, which are most often damaged through human handling.
A human can accumulate several thousand volts of static charge simply by walking. While humans can feel discharges at approximately 2000-3000V, this level is already well above the tolerance threshold for many ESD-sensitive components.
Before implementing ESD-safe products, it's essential to establish an ESD-safe procedure according to ESD standards IEC 61340 or ANSI S2020. These standards form the foundation of ESD preventive protection and provide greater quality assurance.
In addition to our Anti-Static conductive ESD Workstations, we offer a comprehensive range of ESD solutions including:
- Antistatic ESD Chairs
- Antistatic ESD Cleaning & Maintenance products
- Antistatic ESD Clothing
- ESD Shoes and Footwear
- Antistatic ESD Flooring & Table Mats
- ESD Safe Packaging
- ESD Personal Grounding Materials
- Anti-Static ESD Protective Storage Systems
- ESD Test & Measuring Equipment
- ESD Training and Support Services
HerzESD is committed to serving our customers by providing accurate, clear information and solutions. We maintain this commitment even when it means correcting common misconceptions in the market.
At HerzESD, we take pride in delivering only the correct ESD solutions. To fulfill this vision, we collaborate with reliable ESD manufacturers and suppliers who share our commitment to quality and innovation.
HerzESD is a trusted partner in static control solutions. Together with our international partners, we remain vigilant in identifying improvements and developing new solutions for effective static electricity control.
